Fitting tool sets

For safe, precise and quick mounting of bearings, bushings, sealing rings, cam wheels and pulleys, the use of an impact fitting tool set is an absolute necessity.

Especially for bearings, it is important that during mechanical mounting the bearing is supported on its inner and outer ring in order to avoid unnecessary damage and premature failure.

In this way, mounting forces are not transmitted via balls or rollers of the bearings and therefore the raceways are not damaged.

By using the impact-resistant plastic collets, made of unbreakable sheet material, metal-to-metal contact and damage to the shaft are avoided.

The collet numbers are clearly engraved and marked.

Two types of fitting tool set:

IMPACT 33 suitable for 375 bearing types
IMPACT 39 suitable for 600 bearing types

Set IMPACT 33

With three sleeves
With 33 rings
Collet bore mm: 10–50
Collet OD mm: 26–110

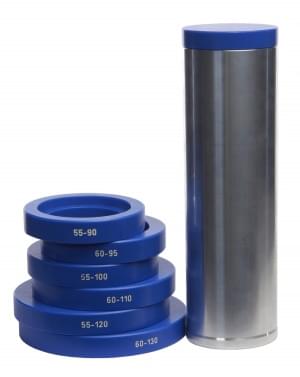

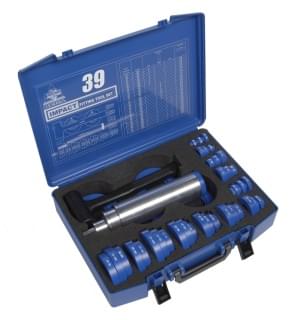

Set IMPACT 39

With four sleeves
With 39 rings
Collet bore mm: 10–60
Collet OD mm: 26–130

More details in the catalogue:

Ruční narážecí soupravy / Ruční narážecí soupravy - Fitting tool sets

File	Size
52 Ruční narážecí soupravy (AJ)	437 kB
