Self-aligning ball bearings



Double-row self-aligning ball bearings are suitable for medium radial loads and small axial loads in both directions, for medium to high speeds. The inner ring of this type of bearing has two raceways and the outer ring has a single spherical raceway with its centre of curvature coincident with the bearing axis. Therefore, the axis of the inner ring, balls and cage can deflect to some extent around the bearing centre. This automatically corrects minor angular misalignment of the shaft and housing caused by machining or mounting error.

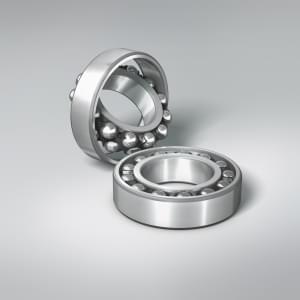

Dvouřadé kuličkové ložisko naklápěcí

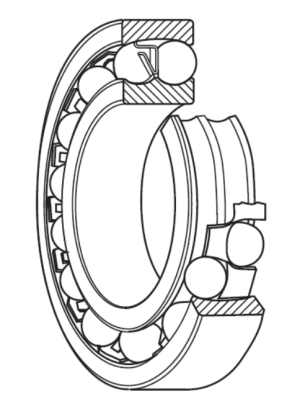

Schéma naklápěcí dvouřadé kuličkové ložisko
Double-row self-aligning ball bearings are produced with a cylindrical or tapered bore. Bearings with a tapered bore are usually mounted on the shaft with an adapter sleeve.

The bearings in the standard design have cages made of glass fibre reinforced polyamide 66. Its designation is "TNG". Some smaller bearings have a clean polyamide 66 cage without glass fibre reinforcement, designated "TN".

A small number of bearings are still produced regularly with a cage pressed from a sheet of steel, designated by the letter "J". Bearings that have a polyamide cage as standard can also be supplied with a steel cage, "J", on request.

Double-row self-aligning ball bearings of types 22 and 23 are also produced with double-sided sealing. Their additional designation is "2RS".

Bearing series12.., 12.. K/H, 13.., 13.. K/H, 22.., 22.. K/H, 23.., 23.. K/H, 112.., 113.., 115..

More details in the catalogue:

dvouřadá kuličková ložiska naklápěcí / Kuličková ložiska dvouřadá naklápěcí - Self-aligning ball bearings
