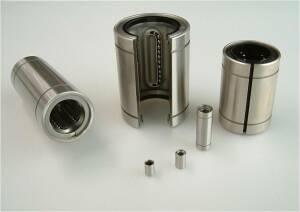

Linear bushings

Ball linear bushings provide accurate linear motion guidance. This linear motion mechanism utilises the rotational motion of ball elements. Since linear motion is obtained using a simple mechanism, the slide bush can be used in a wide variety of applications. Linear rolling bushings achieve significantly low friction, low noise, high speed and smooth running.

Linear ball bearings are made in both open and sealed versions, with adjustable clearance, in open, flanged and extended types, in metric and inch dimensions, as well as in stainless steel.

A wide assortment of many designs and sizes of linear bushings can be used in almost every application, including transportation equipment, food processing equipment and semiconductor manufacturing equipment.

Designations:

Producer IKO

LBE, LBB, LBD – standard types
LMG, LM, LME, LMB – types with extremely low friction and reduced noise.

Producer NB

SM, KB, SW, SMS, KBS, SWS, SMF, KBF, SWF, SMK KBK, SWK, SMFS, KBSF, SWSF, SMSK, KBSK, SWSK, SMT, SMST, GM, GW…

Producer NTN

KLM, KH, KD

TOPBALL linear ball bushings by NB

These are self-aligning, so they can compensate any slight misalignment between the shaft and the housing bore. They are characterised by up to three times load capacity thanks to the special ball guide and thus the extended service life. They have adjustable clearance and a special anti-corrosion design.

These are also produced in inch types.

Designation:

TK – Metric series
TK-OP – Metric series open type
TW – Inch series
TW-OP – Inch series open types

More details in the catalogues:

kuličková lineární pouzdra / kuličková lineární pouzdra - Linear bushings

File	Size
465 IKO Kuličková lineární pouzdra LBE_LBD_LBB_LM_LME_LMB (AJ)	709 kB
465 NB kuličková lineární pouzdra (AJ)	7677 kB
465 NTN kuličková lineární pouzdra (AJ)	8317 kB
465 NSK Kuličková lineární pouzdra (AJ)	288 kB
465 NB kuličková lineární pouzdra TOPBALL (AJ)	1037 kB
465 IKO Kuličková lineární pouzdra (AJ)	6314 kB
