Shims for machine alignment
Sets of stainless (AISI 304) shims
for fast, simple and precise machine alignment.
Available in six different sizes and 11 thicknesses, from 0.025 mm to 3 mm.
Packed in sets of ten shims.
The thickness is etched on each shim.
High-quality, non-corroding material.
The shims have been smoothed and have no burrs.
Suitable for reuse.
31 standard combinations in a handy carrying case. Other combinations available on request.
BETEX peel-off hard brass or stainless-steel shims
For fast, easy and precise machine alignment.
Made of high-quality brass or stainless steel.
12 peel-off layers (8 x 0.1 mm and 4 x 0.05 mm).
Burr-free with specially rounded corners.
They always fit: Simply peel off until the right thickness is obtained.
Laser kit shaft alignment system
This laser kit consists of two wireless sensor units utilising two line laser.
The use of line lasers minimises set-up time.
The free software runs on an iOS or Android tablets or smartphones guiding the users through the entire alignment process. The user interface is entirely graphical, using no text so there are no language barriers to overcome.
- EASY-LASER E420
- BTA EASY-LASER D90
Belt and pulley alignment laser kit
You can see in no time whether your pulleys are correctly aligned.

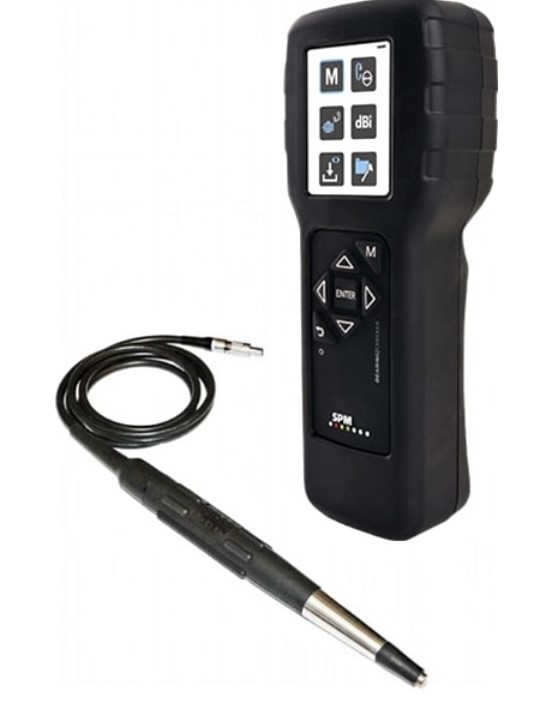

BETEX bearing checker
An economic three-in-one-instrument for on-site condition monitoring.
This bearing checker is unique: The first portable, pocket-sized instrument (185 g, 158 x 62 x 30 mm) for evaluated shock pulse measurement.
Besides shock pulses, the bearing checker measures machine surface temperature with infrared light.
The instrument can be used on most rotating machinery, in a diverse range of industrial environments. Such as:
- Electric motors
portable and user-friendly vibration measurement
For vibration measurement in the 10–1000 Hz range.
It measures instant vibration to prevent machine crash, saving maintenance costs.
Other types of diagnostic instruments
- Laser thermometers – wide selection of laser thermometers from -100°C–1370°C.
- Digital decibel meter – sound meter from 30–130 dB
- Digital laser tachometer – test range of measurement 5–99,999 rpm
More details in the catalogue:
