Lubrication units

The K1 sealing and lubrication units ensure long-term maintenance-free operation and a long service life.
This progressive solution ensures both lubrication and sealing of linear guides and ball screws.

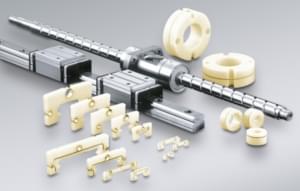

mazací jednotka K1
NSK has developed a highly porous synthetic resin, a special polyolefin that contains large volume of lubricant oil. Unit K1 contains 70% mineral oil and 30% porous synthetic material polyolefin.
The K1 unit is a compact lubrication unit that continuously delivers the optimal amount of oil to the surfaces of the raceways. Touching its surface to the raceway of a rail close to the ball contact point, K1 constantly supplies fresh oil which seeps from the resin.
Since its world premier in 1995, K1 has become the standard and most-requested component of NSK linear guides and ball screws.

Lubrication unit K1 advantages:

  • Environmentally sound, clean lubrication system
  • Significantly longer grease life
  • Long-term, maintenance-free operation
  • Optimum lubrication in severe environments (under high loads, with high contamination)
  • Prevents cooling and cutting fluids from being contaminated with grease

More details in the catalogues:

domazávací jednotky / domazávací jednotka K1 - K1 Lubrication unit
